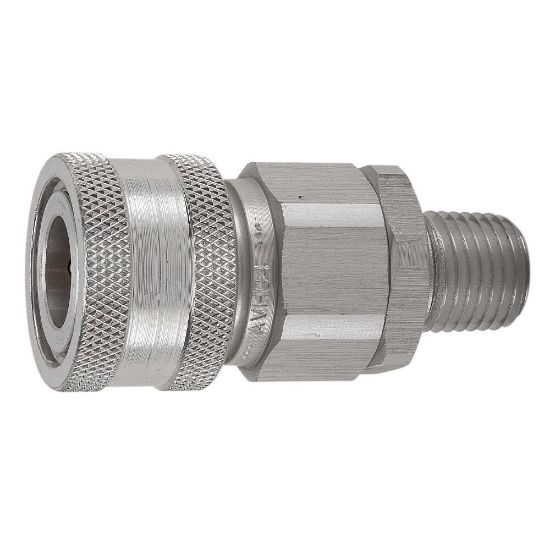

AVHC4-4M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU AVHC4-4M

$60.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Male NPT	Valve Type	Poppet
Body Material	Aluminum	Maximum Operating Pressure	2250
Division	Quick Coupling Division	Application	Hydraulic, General Purpose
Product Type	Manual Connect	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Aluminum	Seal Material	Nitrile
Hex Size	0.88 inch	Plating Type	na
