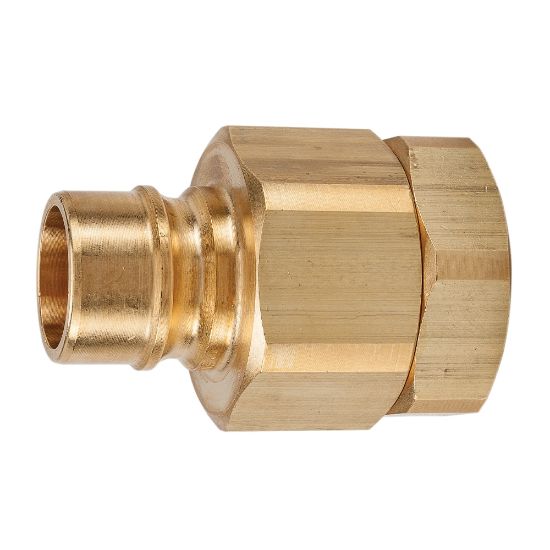

BPHN4-2F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU BPHN4-2F

$18.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	2250
Connection Type	Female NPTF	Coupling Half	Male Nipple
Body Material	BRASS	Body Size (inch)	1/4
Connection Thread Size (inch)	1/8 - 27	Valve Type	Unvalved
Body Material	Brass	Valve Type	Unvalved
Division	Quick Coupling Division	Application	Hydraulics
Dimensional Weight	0.02730215827338129 lb	Plating Type	n/a
Hex Size	0.56 inch	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Product Type	Manual Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
