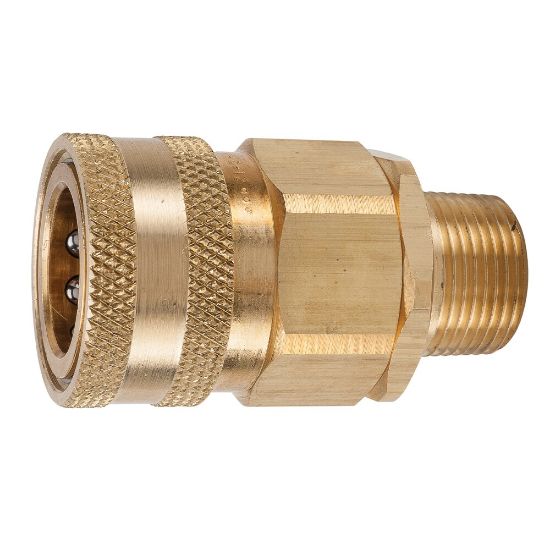

BVHC4-4M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	13 in stock

SKU BVHC4-4M

$39.94/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Connection Type	Male NPT
Valve Type	Poppet	Maximum Operating Pressure	2250
Division	Quick Coupling Division	Application	Hydraulics
Product Type	Manual Connect	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Brass	Seal Material	Nitrile
Dimensional Weight	0.02670863309352518 lb	Hex Size	0.88 inch
Plating Type	n/a
