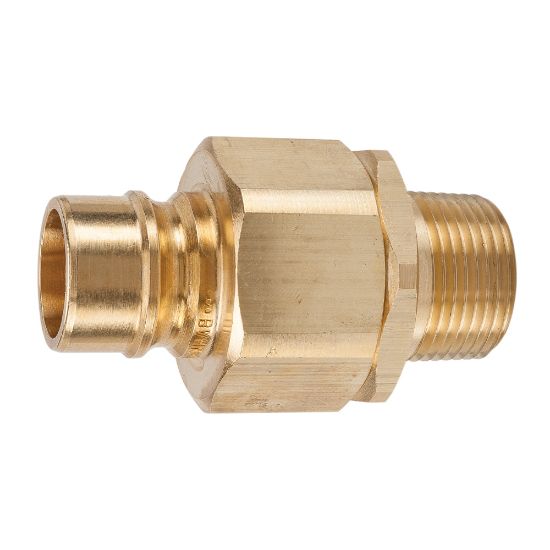

BVHN4-4MV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU BVHN4-4MV

$26.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Connection Type	Male NPT
Valve Type	Poppet	Maximum Operating Pressure	2250
Division	Quick Coupling Division	Application	Hydraulics
Product Type	Manual Connect	Valve Type	Poppet
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
Body Material	Brass	Seal Material	Fluorocarbon
Hex Size	0.88 inch	Plating Type	n/a

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
