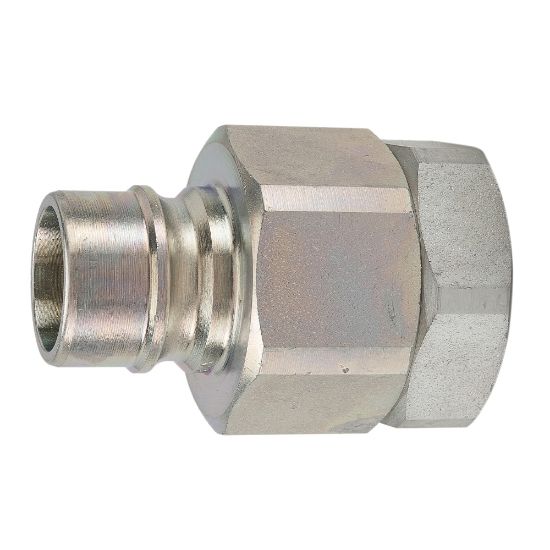

PHN4-2F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	10 in stock

SKU PHN4-2F

$11.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	6500
Connection Thread Size (inch)	1/8 - 27	Valve Type	Unvalved
Coupling Half	Male Nipple	Connection Type	Female NPTF
Body Material	Steel	Body Size (inch)	1/4
Hex Size	0.56 inch	Plating Type	Zinc with Clear Trivalent Chromate
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Product Type	Manual Connect	Valve Type	Unvalved
Division	Quick Coupling Division	Dimensional Weight	0.05460431654676258 lb
Body Material	Steel
