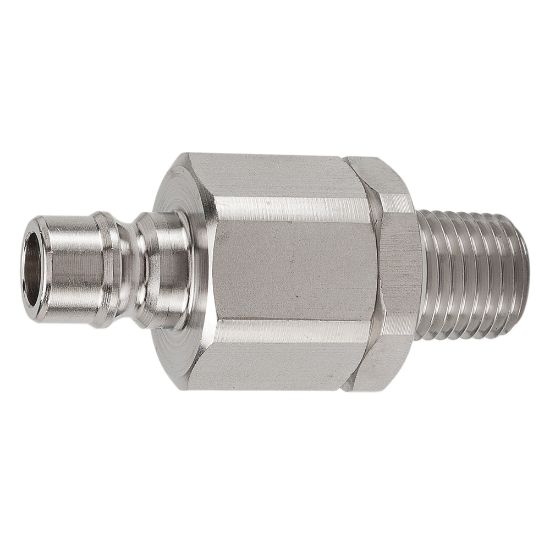

SPHN4-2M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU SPHN4-2M

$36.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Maximum Operating Pressure	5000	Connection Type	Male NPT
Valve Type	Unvalved	Connection Thread Size (inch)	1/8 - 27
Body Material	316 Stainless Steel	Body Size (inch)	1/4
Valve Type	Unvalved	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Seal Material	Nitrile
Plating Type	n/a	Product Type	Manual Connect
Hex Size	0.56 inch	Minimum Operating Temperature	-40 °F
Application	General Purpose	Dimensional Weight	0.05460431654676258 lb
Body Material	Stainless Steel
