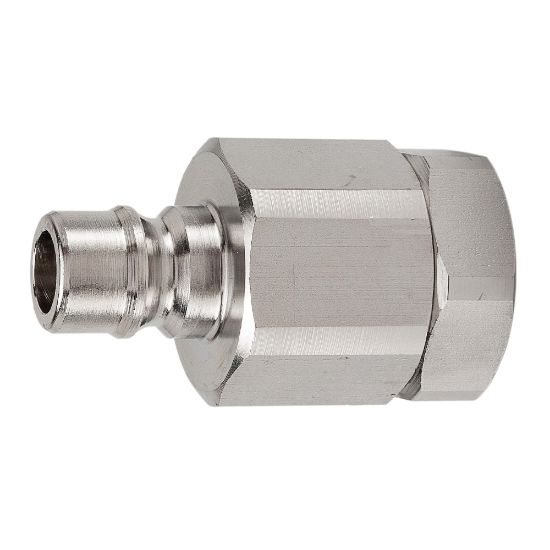

SPHN6-6F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU SPHN6-6F

$32.43/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Coupling Half	Male Nipple	Body Size (inch)	3/8
Connection Thread Size (inch)	3/8 - 18	Connection Type	Female NPSF
Valve Type	Unvalved	Maximum Operating Pressure	4000
Division	Quick Coupling Division	Application	Hydraulics
Product Type	Manual Connect	Valve Type	Unvalved
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Stainless Steel	Seal Material	Nitrile
Dimensional Weight	0.01335431654676259 lb	Hex Size	0.81 inch
Plating Type	n/a

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
