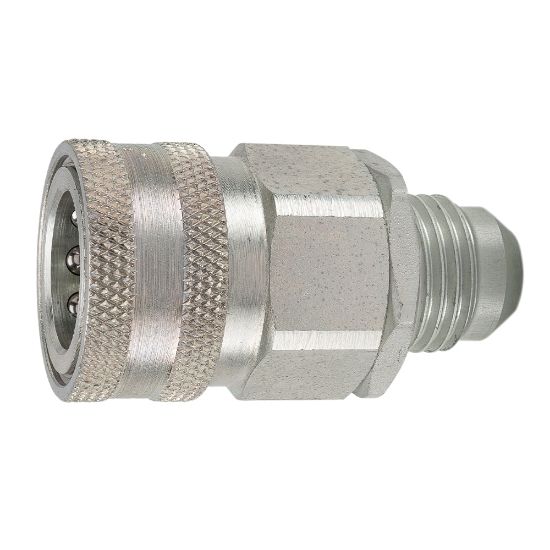

VHC8-8EMV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU VHC8-8EMV

$53.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	4000
Body Material	Steel	Valve Type	Poppet
Body Size (inch)	1/2	Connection Type	Male SAE 37 degree flare
Coupling Half	Female Coupler	Connection Thread Size (inch)	3/4 - 16
Valve Type	Poppet	Division	Quick Coupling Division
Product Type	Manual Connect	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Minimum Operating Temperature	-15 °F
Hex Size	1.19 inch	Plating Type	Zinc with Clear Trivalent Chromate
Body Material	Steel	Application	General Purpose
