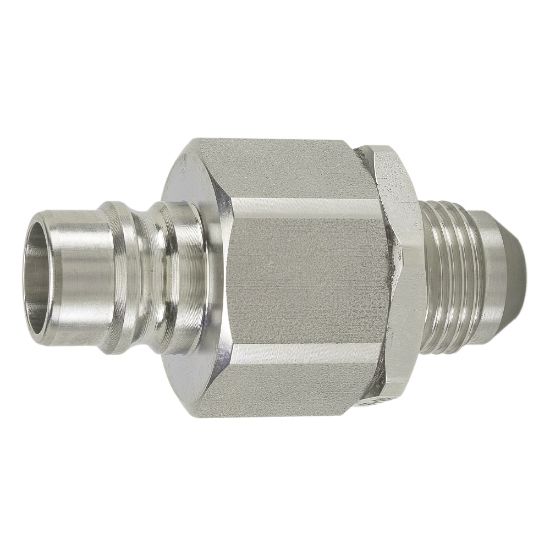

VHN12-12EM - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU VHN12-12EM

$53.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3500
Connection Type	Male SAE 37 degree flare	Connection Thread Size (inch)	1 1/6 - 12
Valve Type	Poppet	Body Material	Steel
Coupling Half	Male Nipple	Body Size (inch)	3/4
Hex Size	1.50 inch	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Application	Hydraulic, General Purpose
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Valve Type	Poppet	Division	Quick Coupling Division
