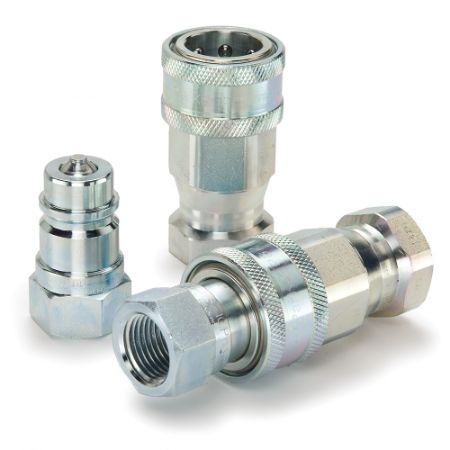

General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock
Markets:
• Construction
• Mobile equipment
• Agriculture
Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection
Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
Read More...Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock
Markets:
• Construction
• Mobile equipment
• Agriculture
Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection
Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Connection Thread Size (inch) | Body Size (inch) | Specifications Met | Application | Flow Rate | Dimensional Weight | Interchange Type | Maximum Operating Pressure | Body Material | Valve Type | Division | Seal Material | Maximum Operating Temperature | Product Type | Hex Size | Minimum Operating Temperature | Plating Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6601-12-10 | 5 in stock | 26 in stock | $58.61/each | EA | Female Coupler | Female NPTF | 3/4 - 14 | 1/2" | ISO 7241-1 Series A | General Purpose | 12 Gal/min | 0.12464028776978417 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.38 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-12-12 | 47 in stock | 478 in stock | $71.82/each | EA | Female Coupler | Female NPTF | 3/4 - 14 | 3/4" | ISO 7241-1 Series A | Hydraulics | 28 Gal/min | 0.15995203836930455 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.62 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-16-16 | 59 in stock | 399 in stock | $94.80/each | EA | Female Coupler | Female NPTF | 1 - 11 1/2 | 1" | ISO 7241-1 Series A | Hydraulics | 50 Gal/min | 0.2255827338129497 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.88 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-2-4 | Backordered | 23 in stock | $56.28/each | EA | Female Coupler | Female NPTF | 1/8 - 27 | 1/4" | ISO 7241-1 Series A | Hydraulics | 3 Gal/min | 0.02670863309352518 lb | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 0.88 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-4-4 | 25 in stock | 395 in stock | $33.48/each | EA | Female Coupler | Female NPTF | 1/4 - 18 | 1/4" | ISO 7241-1 Series A | Hydraulics | 3 Gal/min | 0.03998800959232614 lb | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 0.88 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-4-4Y | Backordered | 6 in stock | $58.41/each | EA | Female Coupler | Female NPTF | 1/4 - 18 | 1/4" | ISO 7241-1 Series A | Hydraulics | 3 Gal/min | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Fluorocarbon | 400 °F | Manual Connect | 0.88 inch | -15 °F | Zinc with Clear Trivalent Chromate | ||
| 6601-6-6 | 52 in stock | 533 in stock | $43.37/each | EA | Female Coupler | Female NPTF | 3/8 - 18 | 3/8" | ISO 7241-1 Series A | Hydraulics | 6 Gal/min | 0.07997601918465227 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.06 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-6-6Y | Backordered | 1 Limited Stock | $61.51/each | EA | Female Coupler | Female NPTF | 3/8 - 18 | 3/8" | ISO 7241-1 Series A | General Purpose | 6 Gal/min | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Fluorocarbon | 400 °F | Manual Connect | 1.06 inch | -15 °F | Zinc with Clear Trivalent Chromate | ||
| 6601-8-10 | 41 in stock | 830 in stock | $45.22/each | EA | Female Coupler | Female NPTF | 1/2 - 14 | 1/2" | ISO 7241-1 Series A | Hydraulics | 12 Gal/min | 0.15995203836930455 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.25 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6601-8-10Y | Backordered | 4 in stock | $75.70/each | EA | Female Coupler | Female NPTF | 1/2 - 14 | 1/2" | ISO 7241-1 Series A | Hydraulics | 12 Gal/min | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Fluorocarbon | 400 °F | Manual Connect | 1.25 inch | -15 °F | Zinc with Clear Trivalent Chromate | ||
| 6602-12-10 | 6 in stock | 18 in stock | $28.59/each | EA | Male Nipple | Female NPTF | 3/4 - 14 | 1/2 | ISO 7241-1 Series A | General Purpose | 12 Gal/min | 0.05341726618705036 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.38 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-12-12 | 51 in stock | 726 in stock | $32.55/each | EA | Male Nipple | Female NPTF | 3/4 - 14 | 3/4 | ISO 7241-1 Series A | Hydraulics | 28 Gal/min | 0.07997601918465227 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.38 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-16-16 | 56 in stock | 600 in stock | $42.67/each | EA | Male Nipple | Female NPTF | 1 - 11 1/2 | 1 | ISO 7241-1 Series A | Hydraulics | 50 Gal/min | 0.11996402877697843 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.62 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-2-4 | 4 in stock | 24 in stock | $15.08/each | EA | Male Nipple | Female NPTF | 1/8 - 27 | 1/4 | ISO 7241-1 Series A | General Purpose | 3 Gal/min | 0.02670863309352518 lb | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 0.56 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-4-4 | 38 in stock | 1145 in stock | $13.35/each | EA | Male Nipple | Female NPTF | 1/4 - 18 | 1/4 | ISO 7241-1 Series A | General Purpose | 3 Gal/min | 0.009997002398081534 lb | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 0.75 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-4-4Y | Backordered | 1 Limited Stock | $29.56/each | EA | Male Nipple | Female NPTF | 1/4 - 18 | 1/4 | ISO 7241-1 Series A | General Purpose | 3 Gal/min | ISO 7241-1 Series A | 5000 psi | Steel | Poppet | Quick Coupling Division | Fluorocarbon | 400 °F | Manual Connect | 0.75 inch | -15 °F | Zinc with Clear Trivalent Chromate | ||
| 6602-6-6 | 47 in stock | 1126 in stock | $21.97/each | EA | Male Nipple | Female NPTF | 3/8 - 18 | 3/8 | ISO 7241-1 Series A | Hydraulics | 6 Gal/min | 0.01999400479616307 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 0.88 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6602-6-6Y | Backordered | 14 in stock | $34.46/each | EA | Male Nipple | Female NPTF | 3/8 - 18 | 3/8 | ISO 7241-1 Series A | General Purpose | 6 Gal/min | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Fluorocarbon | 400 °F | Manual Connect | 0.88 inch | -15 °F | Zinc with Clear Trivalent Chromate | ||
| 6602-8-10 | 93 in stock | 1034 in stock | $18.79/each | EA | Male Nipple | Female NPTF | 1/2 - 14 | 1/2 | ISO 7241-1 Series A | Hydraulics | 12 Gal/min | 0.03998800959232614 lb | ISO 7241-1 Series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | 1.06 inch | -40 °F | Zinc with Clear Trivalent Chromate | |
| 6603-6-6 | Backordered | Backordered | POR | EA | Female Coupler | Female BSPP | 3/8-19 | 3/8" | ISO 7241-1 series A | Hydraulic | General purpose | 6 Gal/min | ISO 7241-1 series A | 4000 psi | Steel | Poppet | Quick Coupling Division | Nitrile | 250 °F | Manual Connect | -40 °F | Zinc with clear trivalent chromate |
