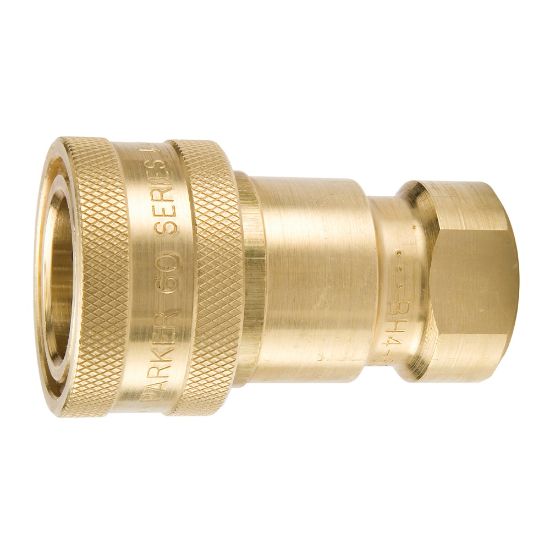

BH2-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: BH2-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH2-60
Price: 36.10 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

65 in stock

Wichita, KS	18
TOPEKA, KS	12
Decatur, IL	10
WICHITA, KS	4
Springfield, MO	4
Kansas City, KS	4
Joplin, MO	4
Olivette, MO	4
COLUMBIA, MO	2
Peoria, IL	2
Kansas City, KS	1

Partner Available:

730 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BH2-60

$36.10/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Seal Material	Nitrile	Coupling Half	Female Coupler
Connection Type	Female NPTF	Application	General Purpose
Maximum Operating Pressure	3700	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Valve Type	Poppet
Valve Material	Brass	Body Material	Brass
Vacuum Pressure Rating	27.4 Inch-Hg	Ball Material	Stainless Steel
Specifications Met	ISO 7241-1 Series B	Dimensional Weight	0.03998800959232614 lb
Flow Rate	3 Gal/min	Product Type	Manual Connect
Minimum Operating Temperature	-40 °C	Plating Type	n/a
Hex Size	0.81 inch

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
