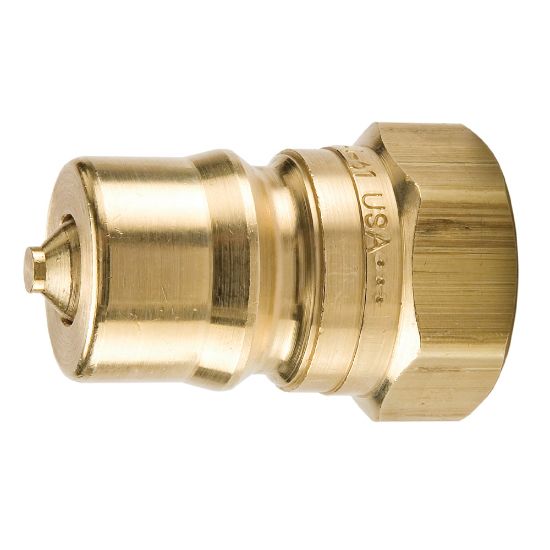

BH2-61-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	17 in stock

SKU BH2-61-STM

$32.23/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Seal Material	Ethylene Propylene
Connection Type	Female NPTF	Application	Steam
Maximum Operating Pressure	3700	Valve Material	Brass
Maximum Operating Temperature	204 °C	Product Type	Manual Connect
Vacuum Pressure Rating	-0.9 bar	Body Material	Brass
Division	Quick Coupling Division	Valve Type	Poppet
Specifications Met	ISO 7241-1, series B	Flow Rate	11 L/min
Plating Type	na	Hex Size	0.75 inch
Minimum Operating Temperature	-54 °C

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
