BH6-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: BH6-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH6-60
Price: 104.05 USD
Availability: LimitedAvailability

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

7 in stock

WICHITA, KS	2
Springfield, MO	2
COLUMBIA, MO	1
Kansas City, KS	1
Peoria, IL	1

Partner Available:

149 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BH6-60

$104.05/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Application	General Purpose
Connection Type	Female NPTF	Body Size (inch)	3/4
Connection Thread Size (inch)	3/4 - 14	Coupling Half	Female Coupler
Maximum Operating Pressure	2200	Seal Material	Nitrile
Body Material	BRASS	Division	Quick Coupling Division
Valve Type	Poppet	Dimensional Weight	0.2255827338129497 lb
Flow Rate	106 L/min	Body Material	Brass
Vacuum Pressure Rating	27.4 Inch-Hg	Hex Size	1.31 inch
Minimum Operating Temperature	-40 °C	Plating Type	n/a
Ball Material	Stainless Steel	Specifications Met	ISO 7241-1 Series B
Valve Material	Brass	Maximum Operating Temperature	250 °F
Product Type	Manual Connect

Customers who bought this item also bought

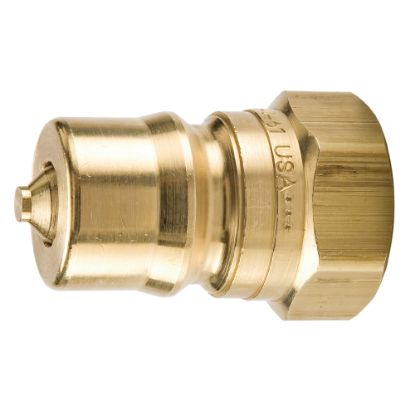

BH6-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
