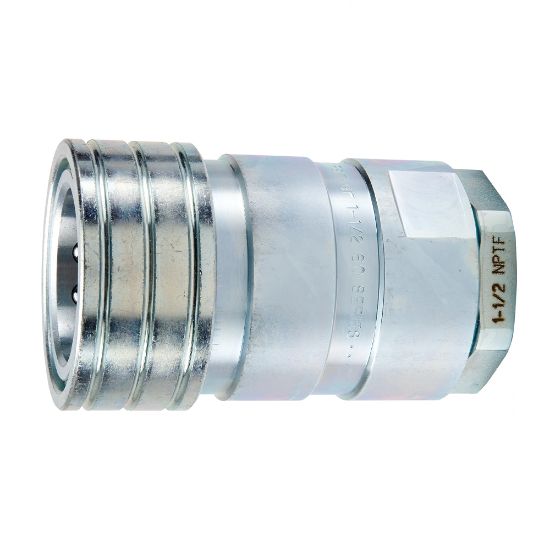

H12-62-T20 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU H12-62-T20

$576.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	1500
Connection Thread Size (inch)	1-5/8 - 12	Seal Material	Nitrile
Coupling Half	Female Coupler	Body Material	Steel
Connection Type	Female ORB	Application	General Purpose
Body Size (inch)	1 1/2	Maximum Operating Temperature	121 °C
Valve Material	Steel	Product Type	Manual Connect
Hex Size	2.38 inch	Plating Type	Zinc with Clear Trivalent Chromate
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 7241-1 Series B
Ball Material	Steel	Flow Rate	378 L/min
Vacuum Pressure Rating	n/a	Body Material	Steel
Division	Quick Coupling Division	Valve Type	Poppet
