H2-63Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 11 days
Partner Available:	Backordered

SKU H2-63Y

$17.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	5000
Connection Type	Female NPTF	Application	General Purpose
Body Material	Steel	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Seal Material	Fluorocarbon
Coupling Half	Male Nipple	Division	Quick Coupling Division
Valve Type	Poppet	Valve Material	Steel
Maximum Operating Temperature	400 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Hex Size	0.75 inch
Minimum Operating Temperature	-15 °F	Specifications Met	ISO 7241-1, series B
Flow Rate	3 Gal/min	Vacuum Pressure Rating	-0.9 bar
Body Material	Steel

Customers who bought this item also bought

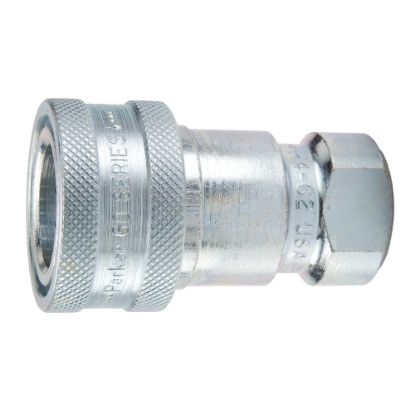

H2-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
