*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

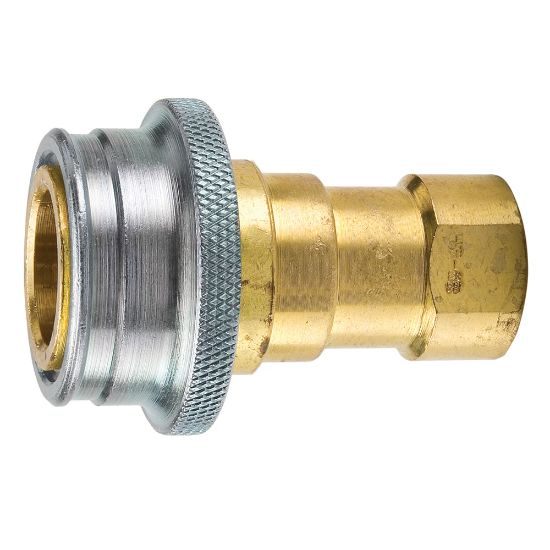

H3-68 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU H3-68

$71.90/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Female Coupler	Seal Material	Ethylene Propylene
Connection Type	Female NPTF	Application	Steam
Maximum Operating Pressure	4000	Division	Quick Coupling Division
Product Type	Manual Connect	Flow Rate	6 Gal/min
Valve Type	Poppet	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-54 °C	Body Material	Steel
Specifications Met	ISO 7241-1 Series B	Dimensional Weight	0.12464028776978417 lb
Hex Size	0.88 inch	Vacuum Pressure Rating	27.4 Inch-Hg
Plating Type	n/a	Valve Material	Brass
Ball Material	Stainless Steel
