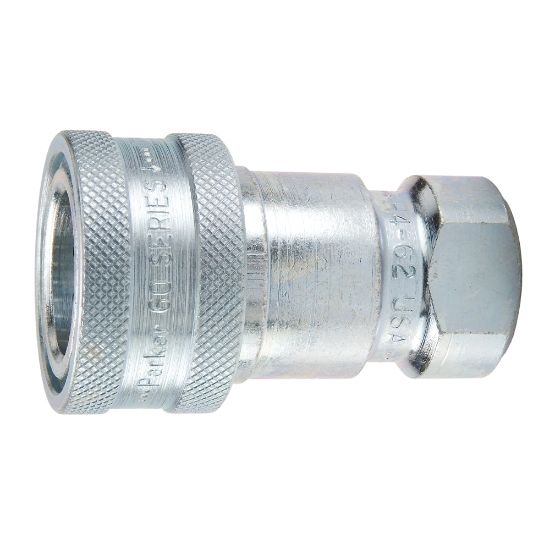

H4-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: H4-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: H4-62
Price: 47.79 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

45 in stock

TOPEKA, KS	15
Kansas City, KS	7
Peoria, IL	6
COLUMBIA, MO	4
Wichita, KS	2
WICHITA, KS	2
Springfield, MO	2
Joplin, MO	2
Olivette, MO	2
Decatur, IL	2
Olivette, MO	1

Partner Available:

667 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU H4-62

$47.79/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	4000
Application	General Purpose	Connection Type	Female NPTF
Body Material	Steel	Body Size (inch)	1/2
Seal Material	Nitrile	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Female Coupler	Division	Quick Coupling Division
Product Type	Manual Connect	Flow Rate	45 L/min
Valve Type	Poppet	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-40 °F	Body Material	Steel
Specifications Met	ISO 7241-1 Series B	Dimensional Weight	0.15995203836930455 lb
Hex Size	1.12 inch	Vacuum Pressure Rating	27.4 Inch-Hg
Plating Type	Zinc with Clear Trivalent Chromate	Valve Material	Steel
Ball Material	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
