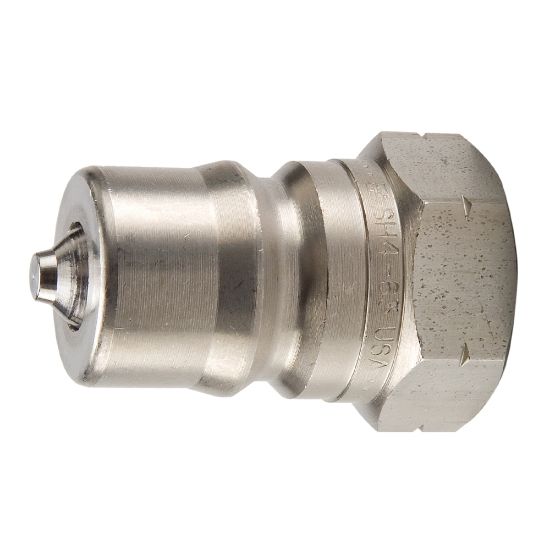

SH1-63W - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	3 in stock

SKU SH1-63W

$61.37/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Ethylene Propylene
Maximum Operating Pressure	5000	Coupling Half	Male Nipple
Connection Type	Female NPTF	Application	General Purpose
Body Material	303 Stainless Steel	Body Size (inch)	1/8
Connection Thread Size (inch)	1/8 - 27	Body Material	Stainless Steel
Vacuum Pressure Rating	27.4 Inch-Hg	Valve Type	Poppet
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Valve Material	303 Stainless steel	Product Type	Manual Connect
Plating Type	na	Minimum Operating Temperature	-54 °C
Hex Size	0.56 inch	Flow Rate	0.8 Gal/min
Specifications Met	ISO 7241-1, series B
