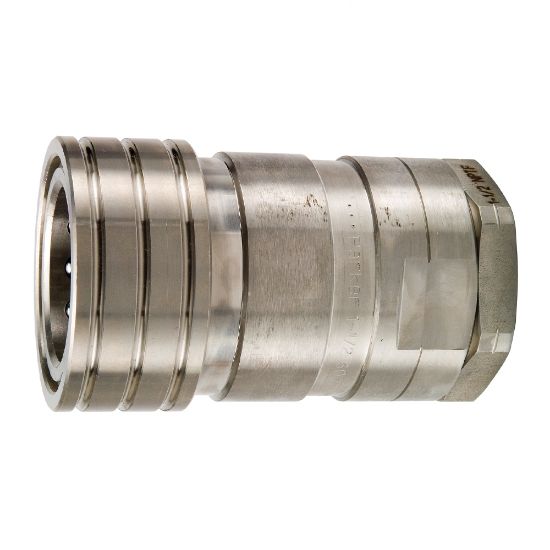

SH12-62N - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	1 Limited Stock

SKU SH12-62N

$1,500.86/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	303 Stainless Steel
Maximum Operating Pressure	1500	Seal Material	Nitrile
Coupling Half	Female Coupler	Connection Thread Size (inch)	1-1/2 - 11 1/2
Body Size (inch)	1 1/2	Connection Type	Female NPTF
Application	General Purpose	Maximum Operating Temperature	250 °F
Valve Material	Stainless Steel 303	Product Type	Manual Connect
Plating Type	n/a	Minimum Operating Temperature	-40 °F
Hex Size	2.50 inch	Ball Material	Stainless Steel
Flow Rate	100 Gal/min	Specifications Met	ISO 7241-1 Series B
Body Material	Stainless Steel	Vacuum Pressure Rating	n/a
Valve Type	Poppet	Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
