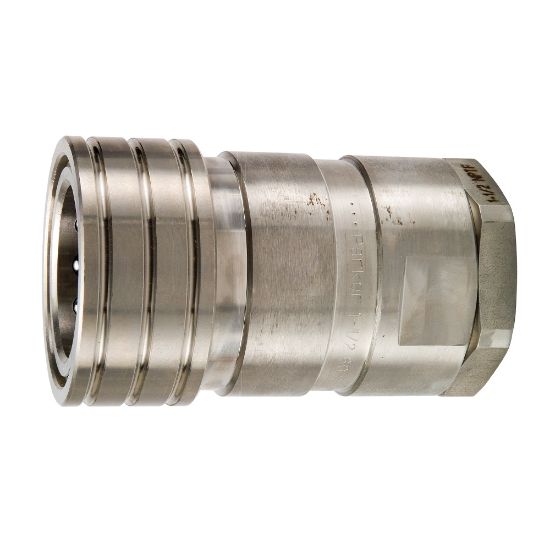

SSH12-62NY - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU SSH12-62NY

$2,849.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Coupling Half	Female Coupler	Connection Thread Size (inch)	1-1/2 - 11 1/2
Seal Material	Fluorocarbon	Connection Type	Female NPTF
Body Size (inch)	1 1/2	Application	General Purpose
Maximum Operating Pressure	1500	Plating Type	n/a
Hex Size	2.50 inch	Minimum Operating Temperature	-26 °C
Specifications Met	ISO 7241-1 Series B	Ball Material	Stainless Steel
Flow Rate	378 L/min	Vacuum Pressure Rating	n/a
Body Material	Stainless Steel	Valve Type	Poppet
Valve Material	Stainless Steel 316	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Product Type	Manual Connect
