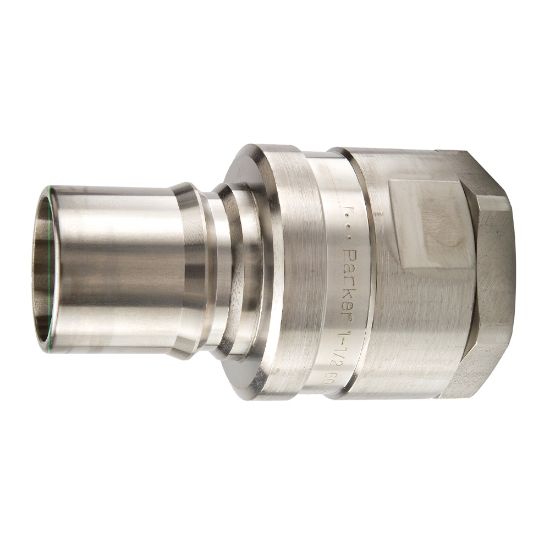

SSH2016-63Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU SSH2016-63Y

$3,516.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Coupling Half	Male Nipple
Connection Type	Female NPTF	Application	General Purpose
Maximum Operating Pressure	1500	Body Size (inch)	2 1/2
Connection Thread Size (inch)	2 - 11 1/2	Flow Rate	200 Gal/min
Body Material	Stainless Steel	Vacuum Pressure Rating	n/a
Valve Type	Poppet	Division	Quick Coupling Division
Maximum Operating Temperature	204 °C	Valve Material	Stainless Steel 316
Product Type	Manual Connect	Hex Size	3.75 inch
Plating Type	n/a	Minimum Operating Temperature	-15 °F
Specifications Met	ISO 7241-1 Series B
