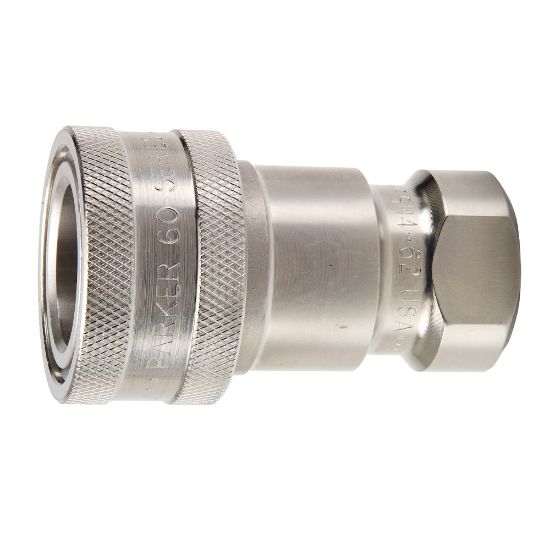

SSH3-62Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	82 in stock

SKU SSH3-62Y

$221.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Maximum Operating Pressure	5000	Application	General Purpose
Connection Type	Female NPTF	Body Material	316 Stainless Steel
Coupling Half	Female Coupler	Seal Material	Fluorocarbon
Connection Thread Size (inch)	3/8 - 18	Valve Type	Poppet
Maximum Operating Temperature	204 °C	Division	Quick Coupling Division
Valve Material	Stainless Steel 316	Plating Type	n/a
Product Type	Manual Connect	Hex Size	0.88 inch
Minimum Operating Temperature	-15 °F	Flow Rate	6 Gal/min
Ball Material	Stainless Steel	Specifications Met	ISO 7241-1 Series B
Dimensional Weight	0.05341726618705036 lb	Body Material	Stainless Steel
Vacuum Pressure Rating	27.4 Inch-Hg
