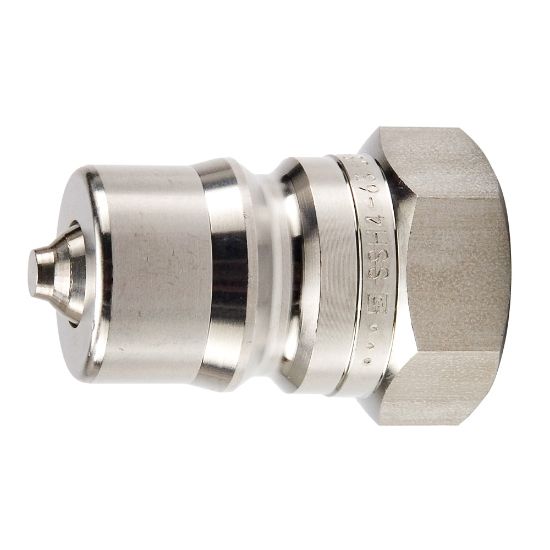

SSH4-63Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	113 in stock

SKU SSH4-63Y

$200.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Connection Thread Size (inch)	1/2 - 14	Seal Material	Fluorocarbon
Coupling Half	Male Nipple	Maximum Operating Pressure	5000
Connection Type	Female NPTF	Application	General Purpose
Body Size (inch)	1/2	Dimensional Weight	0.05341726618705036 lb
Flow Rate	45 L/min	Vacuum Pressure Rating	27.4 Inch-Hg
Body Material	Stainless Steel	Division	Quick Coupling Division
Valve Type	Poppet	Valve Material	Stainless Steel 316
Maximum Operating Temperature	204 °C	Product Type	Manual Connect
Minimum Operating Temperature	-15 °F	Hex Size	1.12 inch
Plating Type	n/a	Specifications Met	ISO 7241-1 Series B
