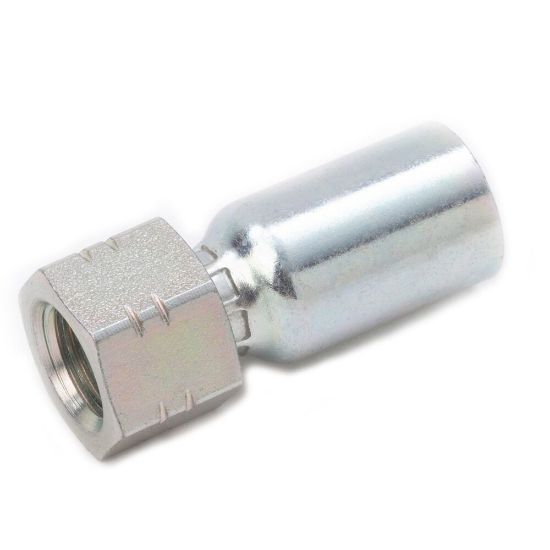

10356-5-4 - Global Fittings - 56 Series - Inch

Name: 10356-5-4 - Global Fittings - 56 Series - Inch
SKU: 10356-5-4
Price: 40.69 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

5 in stock

Springfield, MO	3
Olivette, MO	2

Partner Available:

99 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10356-5-4

$40.69/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Product Style	Male JIC 37° - Rigid - Straight
Length (inch)	2.1"	Connection 2 Size	1/2"-20
Connection 2 Size	1/2"-20 inch Thread	Division	Parflex Division
For Fluid Type	Water	Coating	Chromium 6 Free-plated
Technology	Fluid & Gas Handling	Connection Length	28 mm Cut-off allowance
Connection 1 Size	6.35 mm Hose I.D.	Hex Size	9/16 inch (see drawing legend H)
Hex Size 1	n/a	Connection 2 Type	Rigid
Hex Size 2	n/a	Tube Outside Diameter	n/a
Brand	Parker	Application	Machine Tools
Configuration	Hose to Port	Dimensional Weight	0.0235 lb
Fitting Length	2.10 inch (see drawing legend A)	Shape	Straight
Body Material	Steel	Shipping Weight	0.039 kg
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Connection 1 Type	Hose
Industry	Industrial Manufacturing Equipment	Division	Parflex Division
