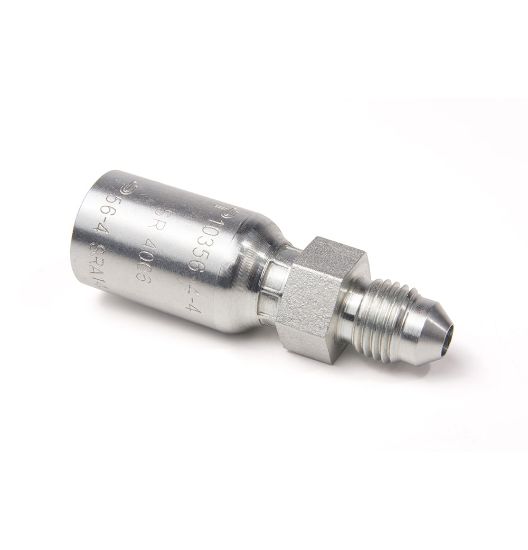

10356-6-6C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU 10356-6-6C

$471.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Stainless Steel
Hose I.D. (inch)	0.375"	Product Style	Male JIC 37° - Rigid - Straight
Length (inch)	2.15"	Connection 2 Size	9/16"-18
For Fluid Type	Hydraulic Fluids	Industry	Transportation
Division	Parflex Division	Connection Length	30 mm Cut-off allowance
Connection 2 Size	9/16"-18 inch Thread	Technology	Fluid & Gas Handling
Hex Size 2	n/a	Hex Size	5/8 inch (see drawing legend H)
Connection 1 Size	9.5 mm Hose I.D.	Connection 2 Type	JIC 37°
Hex Size 1	n/a	Tube Outside Diameter	n/a
Brand	Parker	Application	Industrial Hydraulics
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Connection 1 Type	Hose
Body Material	Stainless Steel	Configuration	Hose to Port
Shipping Weight	0.05 kg	Division	Parflex Division
Shape	Straight	Fitting Length	55 mm (see drawing legend A)
