*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

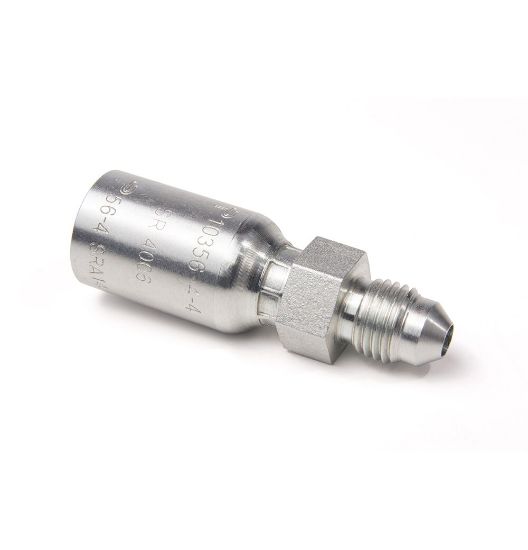

10456-4-3 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 10456-4-3

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.188"	Length (inch)	1.71"
Connection 2 Size	7/16"-20	Product Style	Male SAE 45° - Rigid - Straight
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Public Works	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Body Material	Steel	Industry	Off-road Machinery
Dimensional Weight	0.0522 lb	Shape	Straight
Configuration	Hose to Port	For Fluid Type	Air (Pneumatic Media)
Connection 1 Size	4.8 mm Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	7/16"-20 inch Thread	Connection 2 Type	Male
Hex Size	9/16 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	n/a	Fitting Length	43 mm (see drawing legend A)
Connection Length	1 inch Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.027 kg
