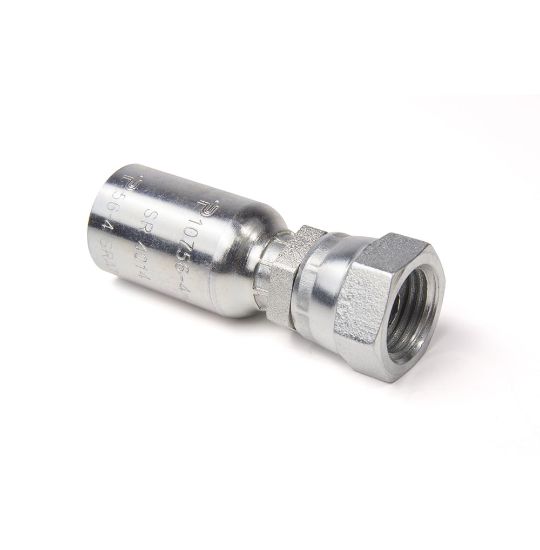

10756-6-6 - Global Fittings - 56 Series - Inch

Name: 10756-6-6 - Global Fittings - 56 Series - Inch
SKU: 10756-6-6
Price: 18.36 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

13 in stock

TOPEKA, KS	9
Springfield, MO	4

Partner Available:

114 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10756-6-6

$18.36/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Connection 2 Size	3/8"-18
Product Style	Female Pipe Swivel	Length (inch)	2.13"
Connection 1 Size	9.5 mm Hose I.D.	Hex Size	11/16 inch (see drawing legend H)
Brand	Parker	Tube Outside Diameter	n/a
Hex Size 2	n/a	Connection 2 Type	Female
Hex Size 1	7/8 inch (see drawing legend J)	Dimensional Weight	0.0249 lb
Application	Machine Tools	Configuration	Hose to Port
Shipping Weight	0.148 lb	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Connection 1 Type	Hose	Fitting Length	2.13 inch (see drawing legend A)
Body Material	Steel	Division	Parflex Division
Shape	Straight	Industry	Transportation
Division	Parflex Division	Coating	Chromium 6 Free-plated
Connection 2 Size	3/8"-18 inch Thread	For Fluid Type	Air (Pneumatic Media)
Technology	Fluid & Gas Handling	Connection Length	1-1/8 inch Cut-off allowance
