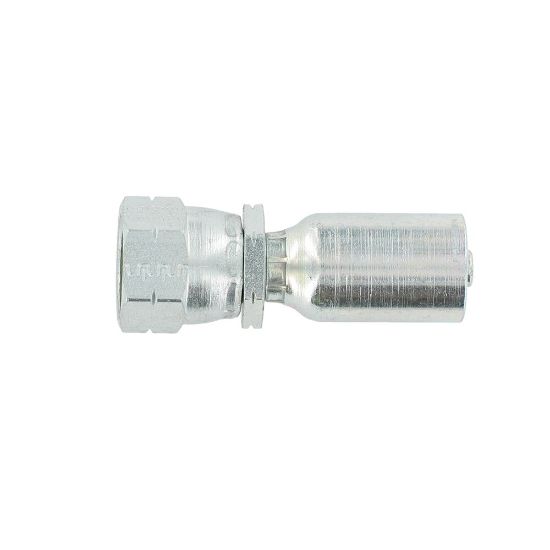

10856-6-4 - Global Fittings - 56 Series - Inch

Name: 10856-6-4 - Global Fittings - 56 Series - Inch
SKU: 10856-6-4
Price: 20.20 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

4 in stock

Olivette, MO

Partner Available:

57 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10856-6-4

$20.20/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.19"
Connection 2 Size	5/8"-18	Product Style	Female SAE 45° - Swivel - Straight
Connection Length	32 mm Cut-off allowance	Connection 2 Size	5/8"-18 inch Thread
Coating	Chromium 6 Free-plated	Technology	Fluid & Gas Handling
Hex Size 2	n/a	Connection 2 Type	Female
Hex Size	11/16 inch (see drawing legend H)	Connection 1 Size	6.35 mm Hose I.D.
Application	Machine Tools	Hex Size 1	3/4 inch (see drawing legend J)
Brand	Parker	Tube Outside Diameter	n/a
Dimensional Weight	0.0235 lb	Configuration	Hose to Port
Body Material	Steel	Connection 1 Type	Hose
Shipping Weight	0.112 lb	Maximum Operating Pressure	5000 psi (Dependent on hose)
Fitting Length	2.19 inch (see drawing legend A)	Division	Parflex Division
Shape	Straight	Industry	Industrial Manufacturing Equipment
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
