11356-4-3 - Global Fittings - 56 Series - Inch

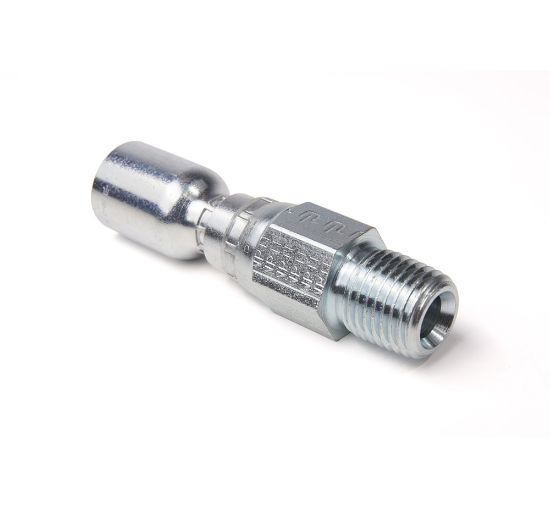

Name: 11356-4-3 - Global Fittings - 56 Series - Inch
SKU: 11356-4-3
Price: 19.82 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

118 in stock

TOPEKA, KS	110
Springfield, MO	8

Partner Available:

35 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 11356-4-3

$19.82/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Male NPTF Pipe - Swivel - Straight
Materials of Construction	Steel	Length (inch)	2.59"
Hose I.D. (inch)	0.188"	Connection 2 Size	1/4"-18
Industry	Transportation	For Fluid Type	Hydraulic Fluids
Connection 2 Size	1/4"-18 inch Thread	Division	Parflex Division
Coating	Chromium 6 Free-plated	Connection Length	1-7/8 inch Cut-off allowance
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Hex Size 1	5/8 inch (see drawing legend J)	Hex Size 2	n/a
Hex Size	n/a	Connection 1 Size	4.8 mm Hose I.D.
Application	Industrial Hydraulics	Tube Outside Diameter	n/a
Brand	Parker	Connection 1 Type	Hose
Dimensional Weight	0.0249 lb	Maximum Operating Pressure	5000 psi (Dependent on hose)
Configuration	Hose to Port	Body Material	Steel with Nitrile O-Ring
Shape	Straight	Division	Parflex Division
Fitting Length	2.59 inch (see drawing legend A)	Shipping Weight	0.121 lb
