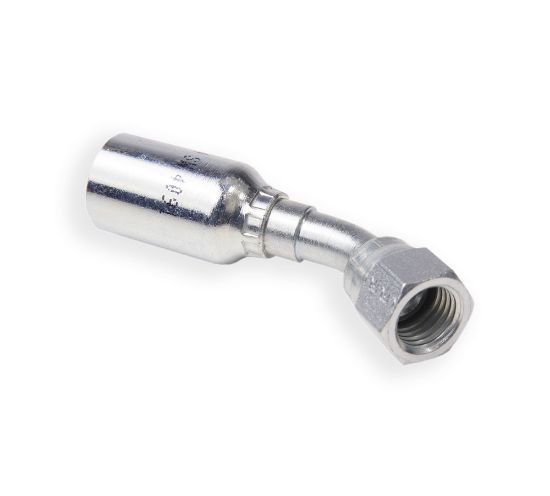

13756-10-8 - Global Fittings - 56 Series - Inch

Name: 13756-10-8 - Global Fittings - 56 Series - Inch
SKU: 13756-10-8
Price: 73.20 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

8 in stock

Springfield, MO	4
Kansas City, KS	4

Partner Available:

20 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13756-10-8

$73.20/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.5"	Connection 2 Size	7/8"-14
Length (inch)	2.87"	Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop
For Fluid Type	Oil	Division	Parflex Division
Connection 2 Size	7/8"-14 inch Thread	Division	Parflex Division
Shape	Elbow 45° Short Drop	Industry	Transportation
Technology	Fluid & Gas Handling	Connection Length	44 mm Cut-off allowance
Coating	Chromium 6 Free-plated	Application	Industrial Hydraulics
Brand	Parker	Tube Outside Diameter	n/a
Hex Size 2	n/a	Connection 2 Type	Swivel
Hex Size 1	1 inch (see drawing legend J)	Hex Size	n/a
Connection 1 Size	12.7 mm Hose I.D.	Body Material	Steel
Connection 1 Type	Hose	Shipping Weight	0.289 lb
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Fitting Length	2.87 inch (see drawing legend A)
Configuration	Hose to Port	Dimensional Weight	0.1133 lb
