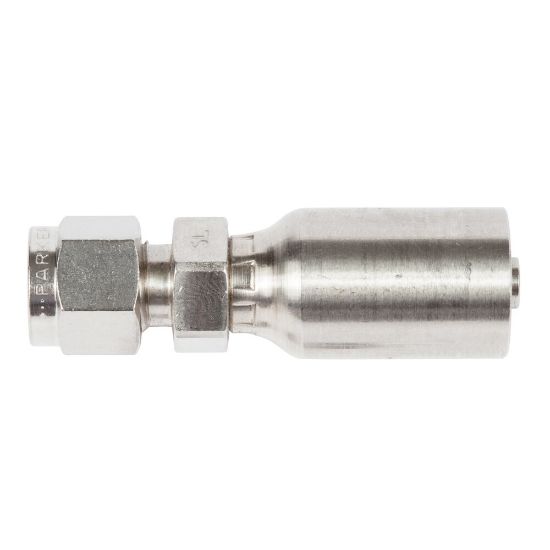

1AL56-4-4C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	19 in stock

SKU 1AL56-4-4C

$500.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female A-Lok® Compression
Hose I.D. (inch)	0.25"	Materials of Construction	Stainless Steel
Connection 2 Size	7/16"-20	Length (inch)	1.91"
Hex Size	9/16 inch (see drawing legend H)	Connection 1 Size	6.35 mm Hose I.D.
Connection 2 Type	Compression With Nut & Ferrule	Hex Size 1	n/a
Hex Size 2	n/a	Configuration	Hose to Port
Tube Outside Diameter	n/a	Brand	Parker
Application	Material Handling	Industry	Industrial Manufacturing Equipment
Division	Parflex Division	Maximum Operating Pressure	5000 psi (Dependent on hose)
Fitting Length	2.50 inch (see drawing legend A)	Shipping Weight	0.101 lb
Connection 1 Type	Hose	Body Material	Stainless Steel
Shape	Straight	Technology	Hydraulics
Connection Length	49 mm Cut-off allowance	Connection 2 Size	7/16"-20 inch Thread
Division	Parflex Division	For Fluid Type	Water
