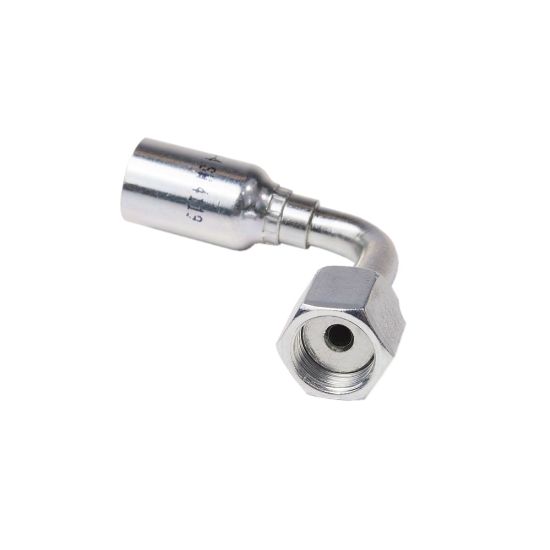

1J156-4-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	32 in stock

SKU 1J156-4-4

$59.49/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.09"
Connection 2 Size	9/16"-18	Product Style	Female Seal-Lok - Swivel - 90° Elbow - Long Drop
Coating	Chromium 6 Free-plated	Connection Length	35 mm Cut-off allowance
Connection 2 Size	9/16"-18 inch Thread	For Fluid Type	Hydraulic Fluids
Division	Parflex Division	Industry	Transportation
Hex Size 2	n/a	Connection 2 Type	Seal-Lok®
Hex Size	n/a	Connection 1 Size	1/4 inch Hose I.D.
Technology	Fluid & Gas Handling	Configuration	Hose to Port
Application	Agriculture Equipment	Dimensional Weight	0.0567 lb
Tube Outside Diameter	n/a	Brand	Parker
Hex Size 1	11/16 inch (see drawing legend J)	Shape	Elbow 90° Long Drop
Division	Parflex Division	Fitting Length	2.37 inch (see drawing legend A)
Body Material	Steel	Connection 1 Type	Hose
Shipping Weight	0.06 kg	Maximum Operating Pressure	5000 psi (Dependent on hose)
