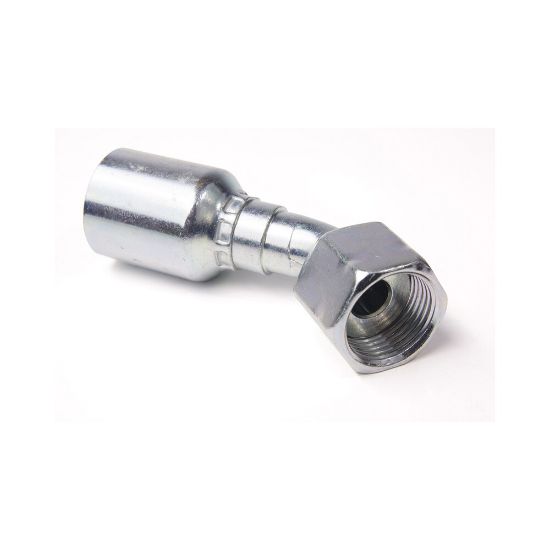

1J256-8-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 1J256-8-8

$338.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.5"	Length (inch)	2.84"
Connection 2 Size	13/16"-16	Product Style	Female Seal-Lok - Swivel - 30° Elbow
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Material Handling	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Body Material	Steel	Industry	Off-road Machinery
Dimensional Weight	0.0522 lb	Shape	Elbow 30°
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Size	12.7 mm Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	13/16"-16 inch Thread	Connection 2 Type	Swivel
Hex Size	n/a	Coating	Chromium 6 Free-plated
Hex Size 1	15/16 inch (see drawing legend J)	Fitting Length	72 mm (see drawing legend A)
Connection Length	43 mm Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.096 kg
