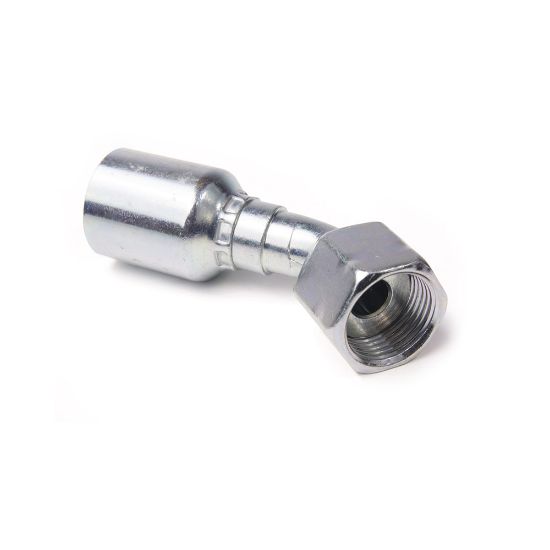

1J756-6-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	3 in stock

SKU 1J756-6-4

$36.94/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.27"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 45° Elbow
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Construction Equipment	Maximum Operating Pressure	5000 psi (Dependent on hose)
Body Material	Steel	Industry	Off-road Machinery
Dimensional Weight	0.0529 lb	Shape	Elbow 45°
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Size	1/4 inch Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	11/16"-16 inch Thread	Connection 2 Type	Seal-Lok®
Hex Size	n/a	Coating	Chromium 6 Free-plated
Hex Size 1	13/16 inch (see drawing legend J)	Fitting Length	58 mm (see drawing legend A)
Connection Length	33 mm Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.093 lb
