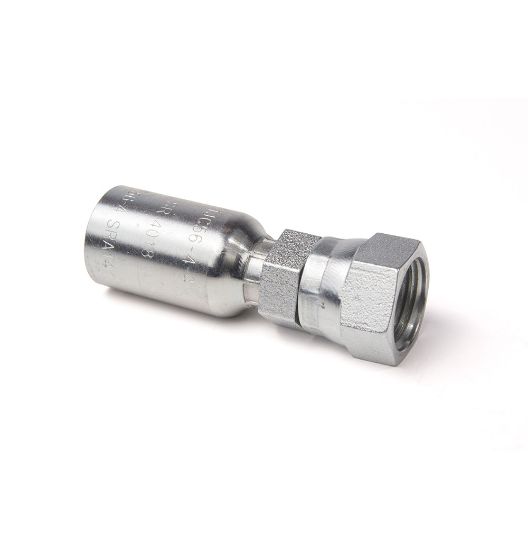

1JC56-4-2 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	115 in stock

SKU 1JC56-4-2

$35.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Product Style	Female Seal-Lok - Swivel - Straight - Short	Hose I.D. (inch)	0.125"
Connection 2 Size	9/16"-18	Length (inch)	1.34"
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Construction Equipment	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Body Material	Steel	Industry	Industrial Manufacturing Equipment
Dimensional Weight	0.0106 lb	Shape	Straight Short
Configuration	Hose to Port	For Fluid Type	Air (Pneumatic Media)
Connection 1 Size	1/8 inch Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	9/16"-18 inch Thread	Connection 2 Type	Female
Hex Size	5/8 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	11/16 inch (see drawing legend J)	Fitting Length	34 mm (see drawing legend A)
Connection Length	3/4 inch Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.09 lb
