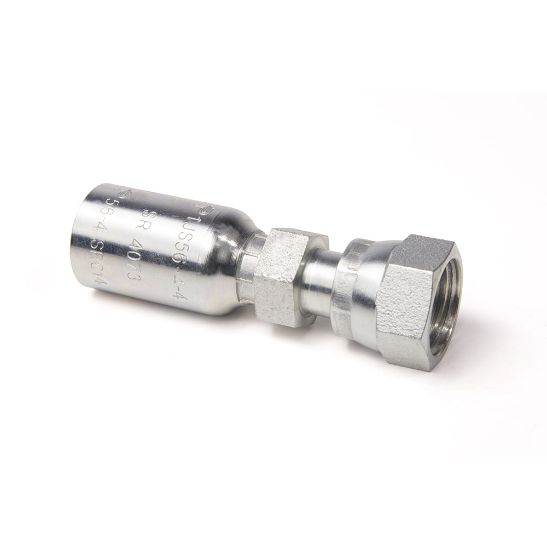

1JS56-8-6 - Global Fittings - 56 Series - Inch

Name: 1JS56-8-6 - Global Fittings - 56 Series - Inch
SKU: 1JS56-8-6
Price: 64.26 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

28 in stock

Springfield, MO	6
TOPEKA, KS	6
Peoria, IL	5
Decatur, IL	5
Joplin, MO	4
Wichita, KS	2

Partner Available:

311 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1JS56-8-6

$64.26/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	2.4"
Connection 2 Size	13/16"-16	Product Style	Female Seal-Lok - Swivel - Straight - Long
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Industrial Hydraulics	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Body Material	Steel	Industry	Transportation
Dimensional Weight	0.0567 lb	Shape	Straight Long
Configuration	Hose to Port	For Fluid Type	Air (Pneumatic Media)
Connection 1 Size	9.5 mm Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	13/16"-16 inch Thread	Connection 2 Type	Female
Hex Size	9/16 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	15/16 inch (see drawing legend J)	Fitting Length	2.40 inch (see drawing legend A)
Connection Length	36 mm Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.101 kg
