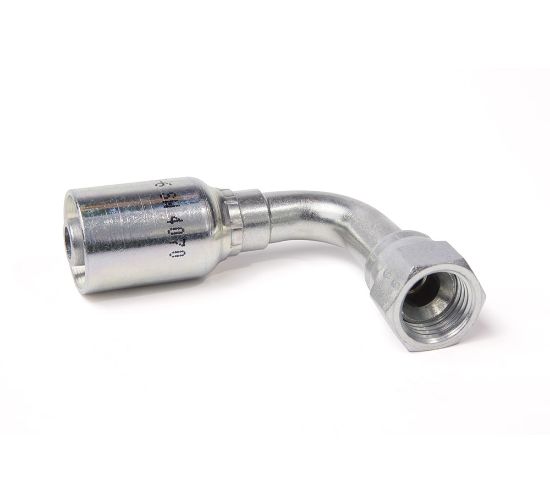

1L956-5-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	14 in stock

SKU 1L956-5-4

$62.55/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Connection 2 Size	1/2"-20
Length (inch)	2.01"	Product Style	Female JIC 37° - Swivel - 90° Elbow - Medium Drop
Brand	Parker	Tube Outside Diameter	n/a
Application	Industrial Hydraulics	Hex Size 1	5/8 inch (see drawing legend J)
Connection 1 Size	1/4 inch Hose I.D.	Hex Size 2	n/a
Connection 2 Type	Female	Hex Size	n/a
Maximum Operating Pressure	5000 psi (Dependent on hose)	Shipping Weight	0.117 lb
Fitting Length	59 mm (see drawing legend A)	Shape	Elbow 90° Medium Drop
Body Material	Steel	Connection 1 Type	Hose
Configuration	Hose to Port	Dimensional Weight	0.0567 lb
Division	Parflex Division	Connection 2 Size	1/2"-20 inch Thread
For Fluid Type	Hydraulic Fluids	Industry	Industrial Manufacturing Equipment
Division	Parflex Division	Connection Length	35 mm Cut-off allowance
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
