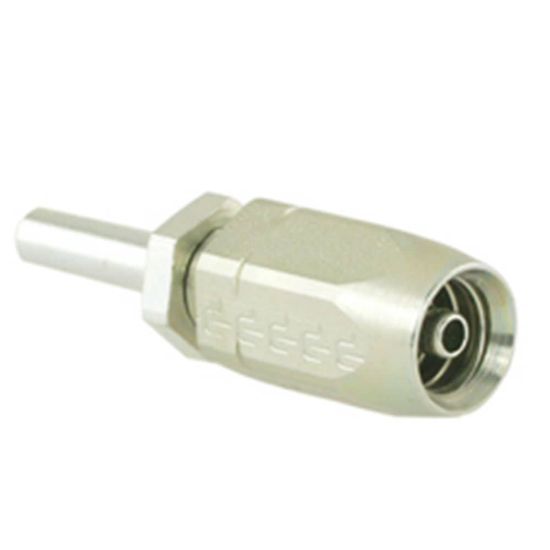

1TU56-4-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	3 in stock

SKU 1TU56-4-4

$85.16/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.35"
Product Style	Universal Tube Stub	Hex Size 1	n/a
Tube Outside Diameter	n/a	Brand	Parker
Connection 2 Type	Stub End	Hex Size 2	n/a
Hex Size	11/16 inch (see drawing legend J)	Connection 1 Size	6.35 mm Hose I.D.
Connection 1 Type	Hose	Body Material	Steel
Fitting Length	2.35 inch (see drawing legend A)	Shipping Weight	0.04 kg
Maximum Operating Pressure	5000 psi (Dependent on hose)	Application	Material Handling
Dimensional Weight	0.0106 lb	Configuration	Hose to Port
For Fluid Type	Oil	Industry	Off-road Machinery
Division	Parflex Division	Shape	Straight Universal Inch
Division	Parflex Division	Technology	Fluid & Gas Handling
Connection Length	35 mm Cut-off allowance	Connection 2 Size	0.25 inch Diameter (see drawing legend R)
Coating	Chromium 6 Free-plated
