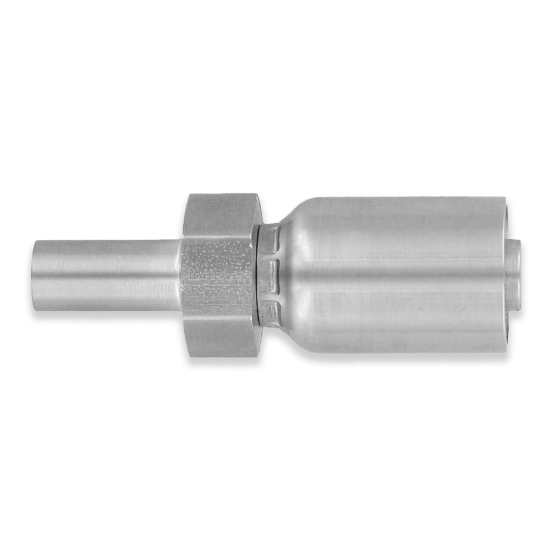

Picture of 1TU56-4-4C - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1TU56-4-4C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Manufacturer: Parker
Availability:
20 in stock
Decatur, IL20
Partner Available:8 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 1TU56-4-4C
$123.71/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHose I.D. (inch)0.25"
Materials of ConstructionStainless SteelLength (inch)2.35"
Product StyleUniversal Tube StubIndustryOff-road Machinery
DivisionParflex DivisionMaximum Operating Pressure5000 psi (Dependent on hose)
Shipping Weight0.088 lbFitting Length2.35 inch (see drawing legend A)
Body MaterialStainless SteelShapeStraight Universal Inch
DisclaimerThe user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.TechnologyFluid & Gas Handling
Connection Length35 mm Cut-off allowanceDivisionParflex Division
Connection 2 Size0.25 inch Diameter (see drawing legend R)For Fluid TypeWater
Hex Size11/16 inch (see drawing legend J)Connection 1 Size1/4 inch Hose I.D.
Hex Size 2n/aHex Size 1n/a
Connection 2 TypeStub EndDimensional Weight0.0223 lb
ConfigurationHose to PortConnection 1 TypeHose
BrandParkerTube Outside Diametern/a
ApplicationAgriculture Equipment
