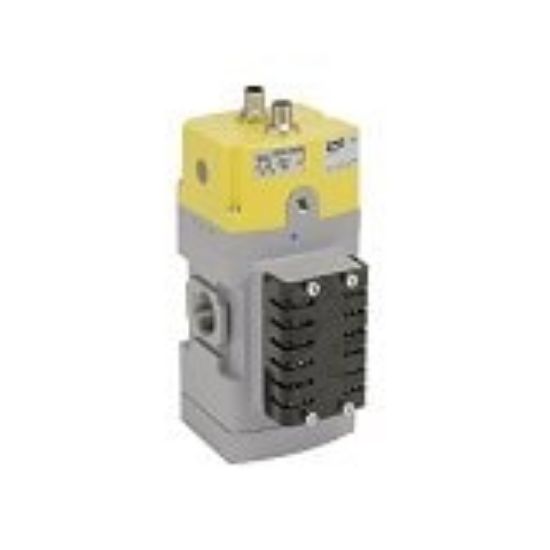

P33DB16CCEN - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU P33DB16CCEN

$1,205.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Black Grill
Port Type	[B1] - BSPP "G"	Port Size	[6] - 3/4 inch
Sensor Connection	[C] - M12 pins: 5&2, 1&4, common 3	Solenoid Connection	[C] - M12 pins: 3 & 4 for bipolar outputs
Product Style	[P33D] - Without Soft Start	Pressure Gauge	[EN] - None
Division	Pneumatic Division	Brand	Parker
Technology	Pneumatics	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Product Type	Safety Exhaust Valve	Operating Temperature	4° to 50° °C
Width	8 cm	Flow Rate	up to 125 dm3/sec
Port Size	3/4 inch	Port Type	NPT<br>BSPP
Input Voltage	24V DC	Maximum Operating Pressure	30 barg
Body Material	Cast Aluminum	Seal Material	NBR
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Industry	General Industry<br>Automotive<br>Packaging
Weight	4.2 lb	Product Style	Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Height	7.03 inch
Electrical Connection	Two M12 connections	Function	3/2 Normally-Closed
Length	10.93 cm	Minimum Operating Pressure	10 psig
