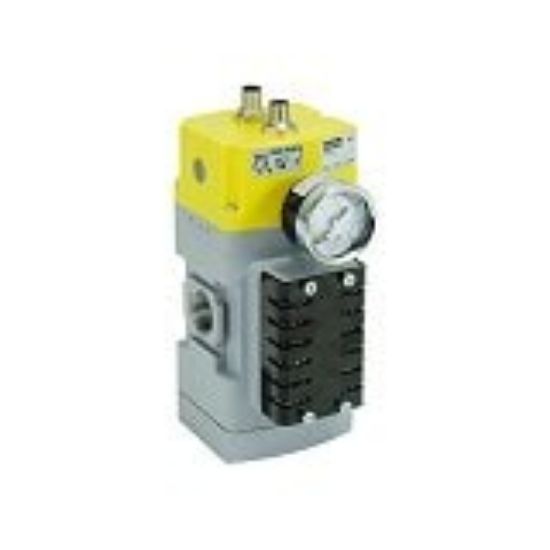

P33DB96AAEG - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU P33DB96AAEG

$1,223.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	[B9] - NPTF
Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3	Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3
Port Size	[6] - 3/4 inch	Pressure Gauge	[EG] - Standard Dial Gauge
Options	Black Grill	Product Style	[P33D] - Without Soft Start
Industry	General Industry	Division	Pneumatic Division
Width	8	Port Type	NPT
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Operating Temperature	4 to 50
Flow Rate	≤ 265	Weight	1.9
Maximum Operating Pressure	150	Body Material	Cast Aluminum
Input Voltage	24	Length	10.93
Brand	Parker	Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)
Product Style	Electro-Pneumatic (Solenoid Actuated)	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Minimum Operating Pressure	10	Seal Material	Nitrile Butadiene Rubber (NBR)
Height	17.87	Technology	Pneumatics
Electrical Connection	M12 (x2)	Product Type	Safety Exhaust Valve
Port Size	3/4	Function	3/2 Normally-Closed
