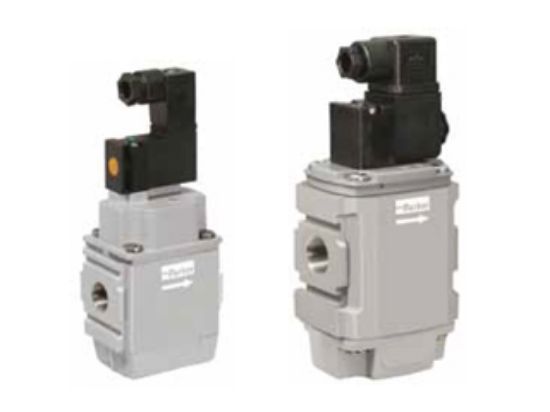

P32SA94Y0N - Global Modular Soft Start Valve

Soft Start Valve

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU P32SA94Y0N

$194.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Temperature	80°C (176°F)
Operator	Internal air pilot	UOM	EA
Pkg Qty	1	Port	1/2 NPT
Supply Pressure Range	44 to 250 PSIG (3 to 17.2 bar)	Maximum Flow	97 SCFM (46 dm3/s)
Operator	Internal air pilot	Accessory/Service Kit Type	Soft Start/Dump Valve
Parker Division	Pneumatic	Port Inch/BSP	NPT
Operating Temperature	80°C (176°F)	Parker Group	Automation
Port	1/2 NPT	Air Preparation Series	Global Modular
Series	P32 Compact	Flow Range	75-99 SCFM
Supply Pressure Range	44 to 250 PSIG (3 to 17.2 bar)	Air Preparation Product Type	Accessory

Product resources

Global Modular Air Preperation (PDF)
Technical Data (PDF)
