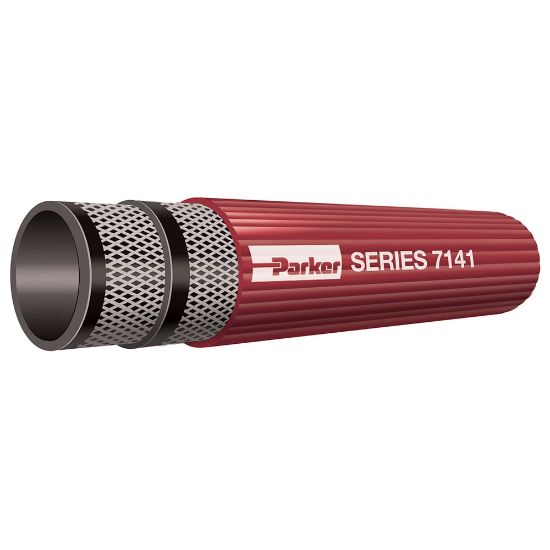

7141-38200 - Grade T Single Line Fuel Gas Welding Hose, Series 7141

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 118 days
Partner Available:	Backordered

SKU 7141-38200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	200	Minimum Bend Radius	101.6 mm
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	2 Plies of Textile
Specifications Met	CGA E-1	Cover Structure	Longitudinal Ribs
Cover Material	Chloroprene Rubber (CR)	Weight	0.16 lb/ft
Inside Diameter	9.5 mm	Maximum Operating Pressure	200 psi
Outside Diameter	16.7 mm	Package Type	Reel
Application	Welding	Division	Hose Products Division
Length per Package	700 ft	Cover Color	Red
Media	Acetylene	Compatible Fitting	HY Series
Maximum Operating Temperature	200 °F	Hose Inner Tube Material	Chloroprene

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Distributor Support

Welding Hose Safety Bulletin (PDF)
