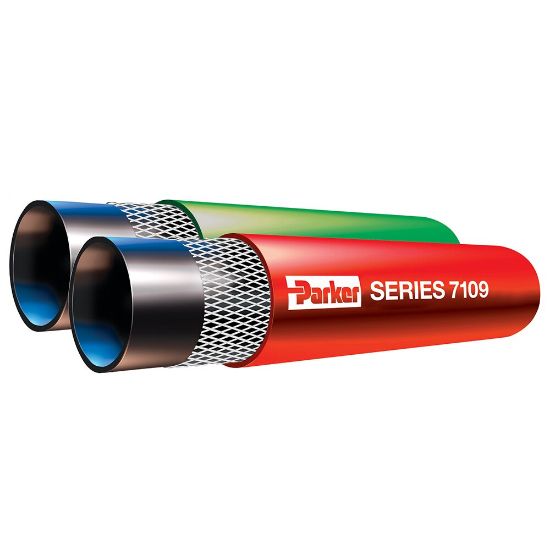

7109NLF-150 - Grade T Twin Line Welding Hose Factory Assemblies, Series 7109

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 118 days
Partner Available:	Backordered

SKU 7109NLF-150

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4
Standard Package Quantity	10	Length (ft)	12-1/2
Spring Guard	n/a	Weight (lbs/ea)	3
Connection Style	B and B	Media	Welding Gases
Length	3.81 m	Hose Inner Tube Material	Chloroprene
Specifications Met	ARPM IP-7	Hose Reinforcement Material	Mutiple Plies of Textile
Application	Welding	Minimum Operating Temperature	-40 °C
Cover Material	Chloroprene Rubber (CR)	Minimum Bend Radius	n/a
Cover Color	Green (Oxygen)	Weight	1.36 kg/ea
Maximum Operating Pressure	200 psi	Inside Diameter	1/4 inch
Outside Diameter	n/a	Package Type	Carton
Division	Hose Products Division	Maximum Operating Temperature	200 °F
Fitting Material	Brass

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
