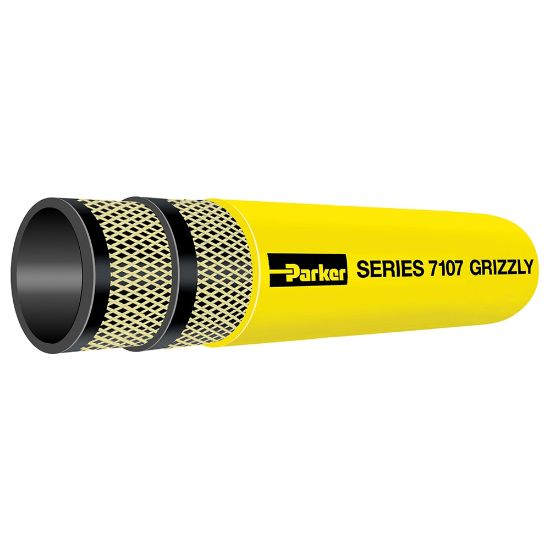

7107-200500 - GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107

Grizzly 500 Nonconductive Oil Resistant Multipurpose Rubber Hose is a premium product designed to transfer air, mild chemicals, oil and water in applications to 212°F and 500 psi, Series 7107.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	157 in stock

SKU 7107-200500

$38.09/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	100
Hose I.D. (inch)	2	Maximum Working Pressure (psi)	500
Hose Inner Tube Material	Nitrile	Media	Water
Maximum Operating Temperature	100 °C	Division	Hose Products Division
Compatible Fitting	71 Series	Hose Reinforcement Material	4 Plies of Aramid
Cover Structure	Smooth	Minimum Bend Radius	24 inch
Cover Material	Nitrile/PVC	Minimum Operating Temperature	-40 °C
Package Type	Reel	Inside Diameter	2 inch
Outside Diameter	2.670 inch	Maximum Operating Pressure	500 psi
Application	Air	Specifications Met	ARPM Class A Tube
Cover Color	Yellow	Weight	1.31 lb/ft

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
