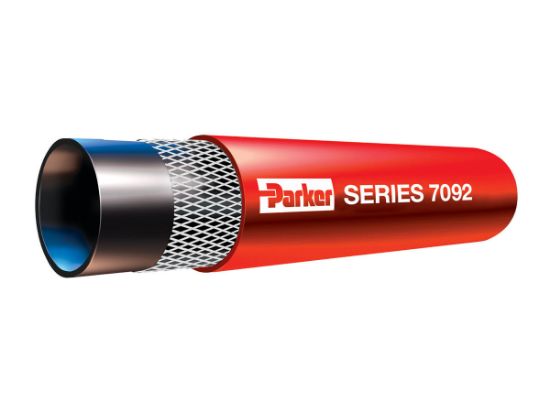

7092-38200 - GST® II General Purpose Air & Water Hose

Name: 7092-38200 - GST® II General Purpose Air & Water Hose
SKU: 7092-38200
Price: 1.27 USD
Availability: InStock

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:

1255 in stock

Wichita, KS	707
TOPEKA, KS	365
Olivette, MO	183

Partner Available:

22052 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7092-38200

$1.27/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Color	Red	Maximum Working Pressure (psi)	200
Standard Pack Qty (ft)	700	Weight	0.14 lb/ft
Maximum Operating Pressure	13.8 bar	Inside Diameter	3/8 inch
Outside Diameter	16.7 mm	Package Type	Reel
Division	Hose Products Division	Cover Color	Red
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	Compatible Fitting	HY Series
Maximum Operating Temperature	212 °F	Specifications Met	ARPM Class C Tube
Hose Reinforcement Material	2 Plies of Textile	Application	Multipurpose
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Operating Temperature	-40 °F
Cover Structure	Smooth	Minimum Bend Radius	3.5 inch
Working Pressure	200 PSI (14 bar)	Inner Diameter	0.375 Inch
Package Type	Reel	Pkg Qty/UOM	700 FT
Color	Red	Pkg Qty	700
Mating Fitting Series	HY	UOM	FT
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter Inch/mm	Inch
Inner Diameter	0.375 Inch	Color	Red
Hose Pressure Range	Low	Trade Name	GST® II
Mating End Fitting Series	HY	Hose Category	Air & Multipurpose
Series	7092

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
