7093-7520050 - GST® II General Purpose Air & Water Hose

Name: 7093-7520050 - GST® II General Purpose Air & Water Hose
SKU: 7093-7520050
Price: 2.74 USD
Availability: InStock

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:

10 in stock

Wichita, KS

Partner Available:

187 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7093-7520050

$2.74/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Standard Pack Qty (ft)	50	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	200	Division	Hose Products Division
Application	Air	Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.
Maximum Operating Pressure	13.8 bar	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °F	Specifications Met	ARPM Class C Tube
Weight	0.32 lb/ft	Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Outside Diameter	28.2 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	3/4 inch	Compatible Fitting	HY Series
Minimum Bend Radius	152.4 mm	Hose Inner Tube Material	Black (ARPM Class C Oil Resistance)
Hose Reinforcement Material	4 Plies of Textile	Cover Color	Black
Package Type	Reel	Cover Structure	Smooth
Pkg Qty/UOM	50 FT	Pkg Qty	50
UOM	FT	Inner Diameter	0.75 Inch
Color	Black	Working Pressure	200 PSI (14 bar)
Mating Fitting Series	HY	Package Type	Carton
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter	0.75 Inch
Inner Diameter Inch/mm	Inch	Color	Black
Hose Pressure Range	Low	Trade Name	GST® II
Mating End Fitting Series	HY	Hose Category	Air & Multipurpose
Series	7093

Customers who bought this item also bought

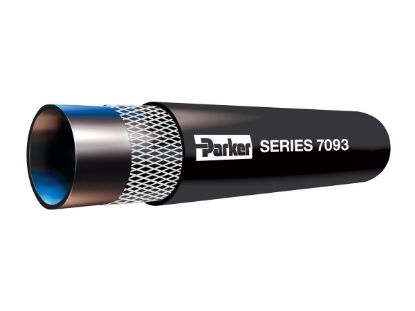

7093-50304 - GST® II General Purpose Air & Water Hose
