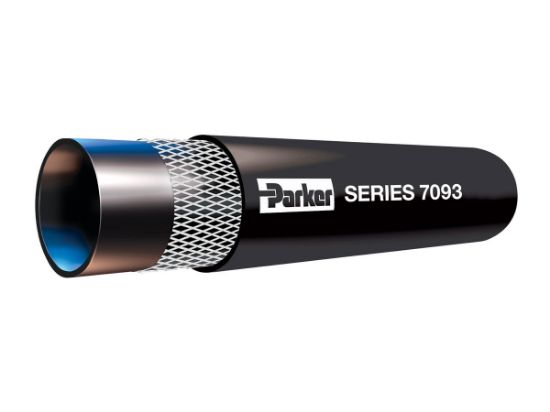

7093-75304 - GST® II General Purpose Air & Water Hose

Name: 7093-75304 - GST® II General Purpose Air & Water Hose
SKU: 7093-75304
Price: 2.77 USD
Availability: InStock

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:

98 in stock

Olivette, MO

Partner Available:

1578 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7093-75304

$2.77/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	3/4	Standard Pack Qty (ft)	400
Maximum Working Pressure (psi)	300	Division	Hose Products Division
Application	Air	Media	Air
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °C	Specifications Met	ARPM Class C Tube
Weight	0.17 kg/m	Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Outside Diameter	29.4 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	3/4 inch	Compatible Fitting	HY Series
Minimum Bend Radius	152.4 mm	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material	4 Plies of Textile	Cover Color	Black
Package Type	Carton	Cover Structure	Smooth
Pkg Qty/UOM	400 FT	Pkg Qty	400
UOM	FT	Inner Diameter	0.75 Inch
Color	Black	Working Pressure	300 PSI (20 bar)
Mating Fitting Series	HY	Package Type	Reel
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter	0.75 Inch
Inner Diameter Inch/mm	Inch	Color	Black
Hose Pressure Range	Low	Trade Name	GST® II
Mating End Fitting Series	HY	Hose Category	Air & Multipurpose
Series	7093

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
