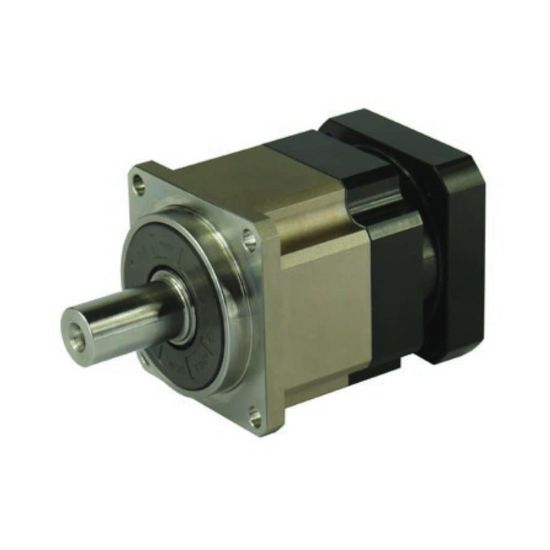

GXA3N005R0201

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU GXA3N005R0201

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Gearbox
Flange Size	EX3 / EY3 - Pilot 60 mm, PCD 75 mm, Shaft 11 mm x 23 mm	Shaft Connection Style	Output Shaft with Keyway
Maximum Input Speed	10000 rpm	Radial Load Capacity	1530 N
Performance	High Precision	Frame Size	60 mm
Configuration	Inline	Rated Torque	531 lb-in
Backlash	5 arc-min	IP Rating	IP65
Ratio	5:1 (Single Stage)	Efficiency Rating	0.97
Gear Geometry	Planetary	Backlash Option	Standard Backlash
Version	ATEX Rated / Inline
