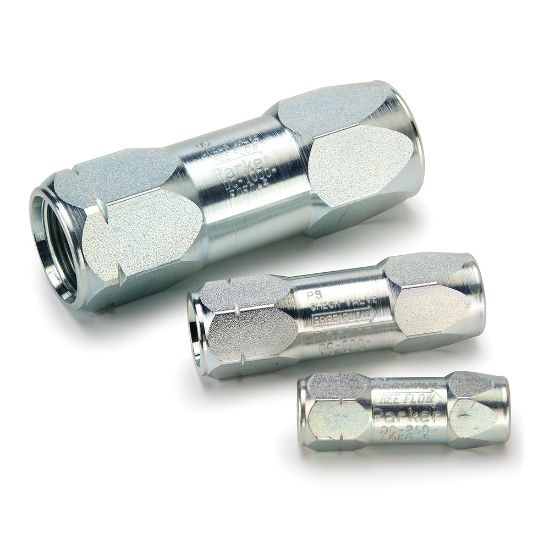

DC-2000-5 - Hard Seat,Hydraulic In Line Check Valves - DC Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 50 days
Partner Available:	Backordered

SKU DC-2000-5

$811.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Inlet Port Size (inch)	2 - 11 1/2 NPTF	Body Size (inch)	2
Outlet Port Connection Type	Female Pipe Thread	Outlet Port Size (inch)	2 - 11 1/2 NPTF
Inlet Port Connection Type	Female Pipe Thread	Maximum Flow Rate	N/A
Division	Quick Coupling Division	Maximum Operating Temperature	-40 °F
Connection Type	Female NPT to Female NPT	Flow Direction	N/A
Seal Material	Metal	Connection Size	2 - 11.5 NPTF
Mounting Type	Threaded	Seat Type	Metal seal
Minimum Operating Temperature	250 °F	Body Material	Steel
Configuration	N/A	Maximum Operating Pressure	3000 psi
Actuation Type	Mechanical
